SunTrac SmartPanel | Solar Thermal Air Conditioning

How it works

The SunTrac SmartPanel employs a solar thermal air conditioning technology where pressure and heat are added to the refrigeration cycle, which reduces the required workload of the compressor and lowers the overall power consumption of the system.

This hybrid thermal AC method displaces a portion of the mechanical energy used by variable capacity, multi-stage, and variable speed compressors, keeping the compressors in low stage, low range, or low capacity while still delivering full and part-load cooling requirements. This approach translates to significant energy savings.

As a solar thermal air conditioning solution, the SunTrac SmartPanel harnesses energy from the sun through parabolic mirrored concentrators that focus the reflected sunlight on specially coated copper pipes, supplementing the passing refrigerant with heat from the sun. This concentrated parabolic array allows for a larger harvesting of energy with a smaller footprint.

A photo-tracking eye keeps the parabolas pointed at the sun, rotating synchronously with the sun’s movement throughout the day. Built-in sensors and controls maintain the system’s temperature, delivering consistent and regulated energy.

Specifications

RiteTemp™ Temperature Control
Scalable to over 500 tons
Simple installation
12v/24v DC power
Self-contained panel
5-year warranty
Integrates with both new equipment installations and existing system upgrades
Compatible with most high efficient HVAC equipment

Package/split, mini/multi-split, energy recovery units, dehumidification units
Chiller systems
Variable speed, multi-stage, and variable capacity

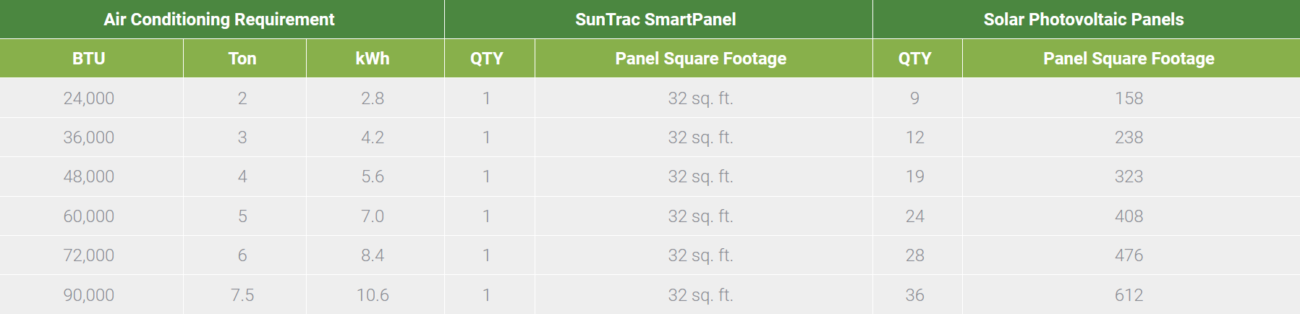

Capacity

Air Conditioning Requirement			SunTrac SmartPanel		Solar Photovoltaic Panels
BTU	Ton	kWh	QTY	Panel Square Footage	QTY	Panel Square Footage
24,000	2	2.8	1	32 sq. ft.	9	158
36,000	3	4.2	1	32 sq. ft.	12	238
48,000	4	5.6	1	32 sq. ft.	19	323
60,000	5	7.0	1	32 sq. ft.	24	408
72,000	6	8.4	1	32 sq. ft.	28	476
90,000	7.5	10.6	1	32 sq. ft.	36	612
